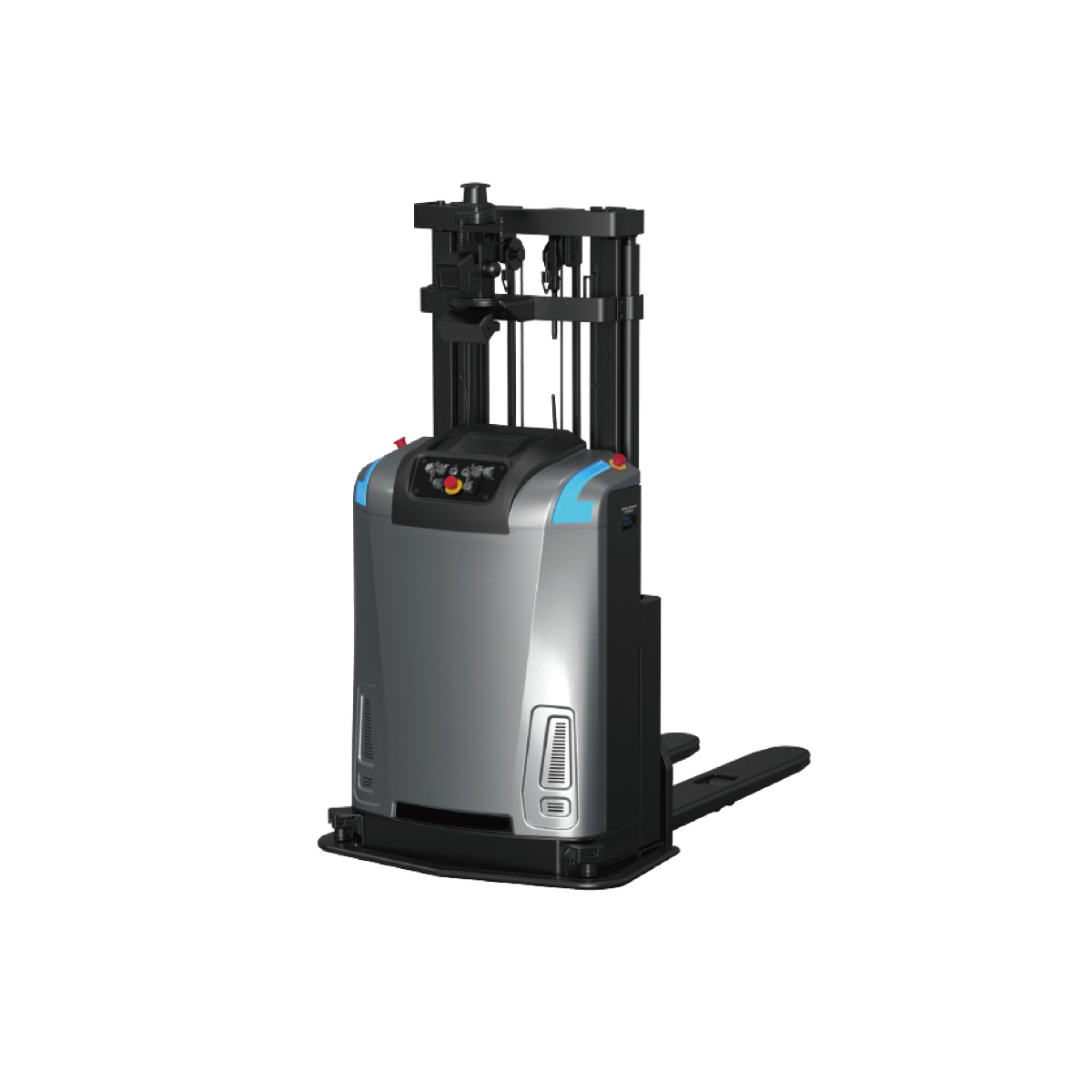

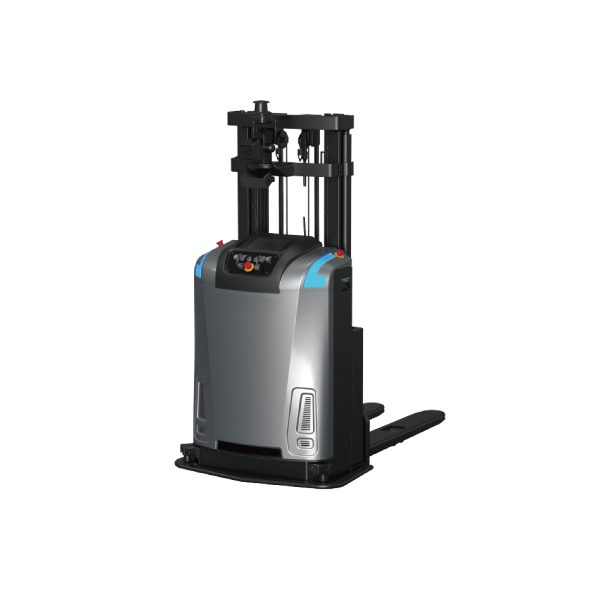

Stacker Autonomous Forklift
AGV-CDD16
 | SLAM Navigation, Precise and Convenient |
| SLAM navigation with an accuracy of ±10 mm, without reflectors and easily deployed. | |
 | 2 m/s Running Speed, Faster and More Efficient |
| The maximum running speed is 2 m/s in both no-load and full-load cases. | |
 | 3 m Lifting with Stable Load Capacity (1.6 T) |
| The load capacity will not decrease and remains at 1.6 T when lifting to 3 m. | |
 | New Industrial Design |
| Family-based industrial design and multi-module quality assurance (operation panel, sensor bracket, wiring harness, etc.) for easier disassembly, assembly, and maintenance. | |
 | Pallet Recognition, Precise and Efficient |
| High-precision identification and precise pallets forking to guaranteed handling speed.Identification of international standard pallets, European standard pallets, and non-standard pallets. | |
 | Diversified Choices and Safe Navigation |
| 360° obstacle detection laser scanning, with 3D cameras, bumper strip, distance sensor, and other sensors. |
| ● Standard ○ Optional - None | ||
| Product model | AGV-CDD16 | |
| Basic parameters | Product name | Laser SLAM Stacker Autonomous Forklift |
| Operation type | Automatic navigation, by manual control device | |
| Navigation type | Laser SLAM | |
| Pallet type | Open pallet | |
| Rated load capacity | 1600 kg | |
| Load centre distance | 600 mm | |
| Weight (with battery) | 1090 kg | |
| Standard lifting height | 3000 mm | |
| Forklift dimensions: L x W x H | 1925 x 1000 x 2040 mm | |
| Fork dimensions: L x W x H | 1220 x 185 x 55 mm | |
| Fork outer width | 550 / 600 / 685 mm | |
| Right-angle stacking aisle width, pallet 1000x1200 (1200 placed along the fork) | 2250+200 mm | |
| Right-angle stacking aisle width, pallet 800x1200 (1200 placed along the fork) | 2230+200 mm | |
| Right-angle stacking aisle width, pallet 1000x1000 (1000 placed along the fork) | 2160+200 mm | |
| Minimum turning radius | 1340+200 mm | |
| Ambient temperature and humidity range | TEMP: 0°C to 50°C / RH: 10% to 90%, no compression, no condensation | |
| Performance parameters | Driving speed: full load / no load | 2 / 2 m/s |
| Passability (slope / step / gap) | <5% / 5 mm / 15 mm | |
| Navigation position accuracy | ±10 mm | |
| Navigation angle accuracy | ±0.5° | |
| Battery parameters | Battery specifications | 24 V / 173 Ah (lithium iron phosphate) |
| Comprehensive battery life | 8 to 10 h | |
| Charging time (10% to 80%) | 2 h | |
| Charging method | Manual / Automatic | |
| Function configurations | Lidar number | 1 (H1) + 3 (C2) |
| Wi-Fi roaming | ● | |
| 3D obstacle avoidance | ○ | |
| Pallet recognition | ○ | |
| Cage stack | ○ | |
| High shelf pallet recognition | ○ | |
| Pallet stack | ○ | |
| HMI display | ● | |
| Safety configurations | E-stop button | ● |
| Sound and light indicator | ● | |
| Braking distance: 1 m/s / 1.5 m/s | ≤30 cm / ≤50 cm | |
| 360° laser protection | ● | |
| Bumper strip | ● | |
| Fork height protection | ● | |
| Certifications | EMC | ● |
| UN38.3 | ● | |
