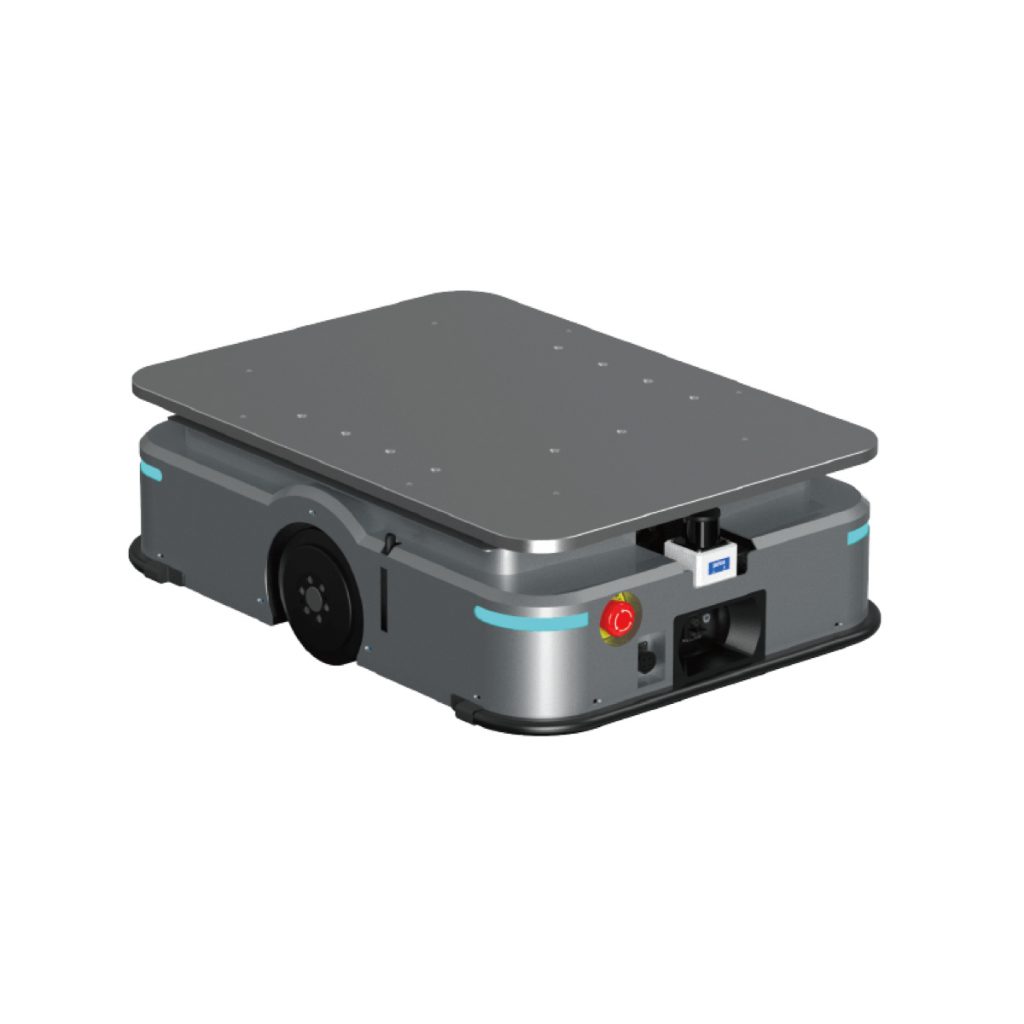

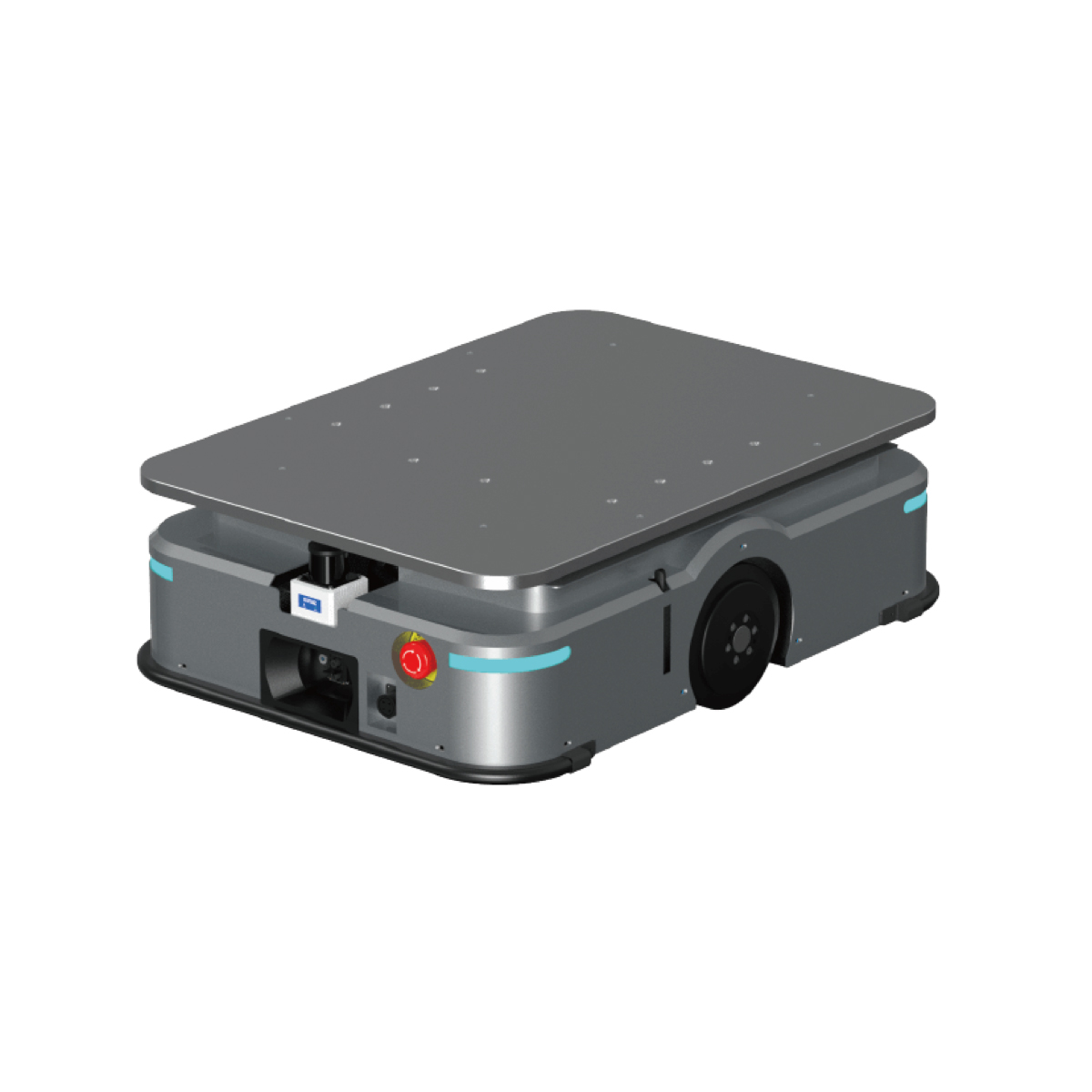

Laser SLAM Latent Jacking Transfer Robot is an upgraded model of AGV-300J. It adopts brand-new PI industrial design. The vehicle size is optimized to be close to that of AGV-150JZ while the load capacity remains unchanged at 300 kg. In addition, the optional downward-looking QR code camera and 5G module are added, and the standard laser can support small-range reflector navigation. Furthermore, the old functions to identify various racks and move under the racks to jack them up are retained. The chassis height is reduced after integrating the jack-up mechanism.
More powerful algorithms
Shelf identification and correction, highly dynamic environment positioning and navigation, slip detection and correction, QR code secondary precise positioning, hybrid navigation, automatic tracking, and use of fifth-order Bezier curve.
Powerful material shelf identification
A variety of merchandise shelves can be identified, and it can move under shelves and lift goods. It can also identify material racks in various industries.
Smaller and more flexible
The smaller size allows for a lower chassis height with the built-in climbing mechanism, lower environmental requirements, more coverage scenarios, and fewer site restrictions.
Safer and more efficient
Dual lasers and sensors on bumper strips at the front and rear for 360° protection; 10 minutes of charging for 1 hour of operation.
New industrial design
With Oneway Robotics' new design PI language, present customers with a powerful, high-tech product with a metallic texture.
Technical Parameters | Navigation method | Laser SLAM |
| Drive mode | Two-wheel differential | |
| Shell color | Cool Gray | |
| L*W*H | 792mm*580mm*250mm | |
| Rotation diameter | 910mm | |
| Load capacity | 300kg | |
| Chassis ground clearance | 25mm | |
| Jacking platform dimensions | 760mm*545mm | |
| Maximum jacking height | 60±2mm | |
| Jacking time | 5±0. 5s | |
| Laser scanning height | FREE 188mm/SICK 193mm | |
| Network Ethernet/Wi-Fi | 802.1 1 a/b/g/n/ac | |
| Ambient temperature& humidity range | TEMP: 0-50°C/ RH: 10-90% no compression, no condensation | |
| IP rating | IP20 |
Battery parameters | Battery specifications | 48V/20AH (Lithium Iron Phosphate) |
| Comprehensive battery life | 8h | |
| Automatic charging parameters | 54.6V/15A | |
| Charging time (10-80%) | <1h | |
| Charging method | Manual/Automatic | |
| Battery cycle number | >1500 times |
Performance parameters | Passability (slope/step/gap) | <5%/5mm/30mm |
| Minimum passable width | 640mm | |
| Navigation position accuracy | ±5mm | |
| Navigation angle accuracy | ±0.5° | |
| Navigation speed | <1.5m/s | |
| Map area(single frame) | <400000m² |
